G500 - Glasswasher

Simple to use

Two button operation, two wash programmes. Simple to remove wash and rinse arms, filters and basket rails for easy cleaning and maintenance.

G500 Product Banner B Asket On Door RIGHT
NEW range banners mobile new 0006 G500 Product Banner Basket On Door MOBILE

G500 - Glasswasher

25 Pint sized Glasses per rack,

wash up to 1,000 glasses per hour.

A powerful performance from simple and robust machine with a 500mm x 500mm basket size.

G500 Product Banner Door Open LEFT
NEW range banners mobile new 0004 G500 Product Banner Door Open MOBILE

G500 - Glasswasher


Glasswashing Simple

Clever software monitors data to improve machine longevity


  • Easy to use, simple to clean, excellent wash results.
  • Simple two-button control.
  • LCD displays wash & rinse tank temperatures plus wash cycle information.
  • Colour coded display.
  • Chemical Pump.


  • Temperature Interlock guaranteeing correct rinse temperature.
  • Two wash programmes - standard (2 minutes) & light (1.5 minutes).
  • Doubled-skinned door.
  • Gravity Drain.
  • Optional Drain Pump.


  • Made in Britain.
  • Next working day delivery available.*
  • Supported by a nationwide network of technicians.

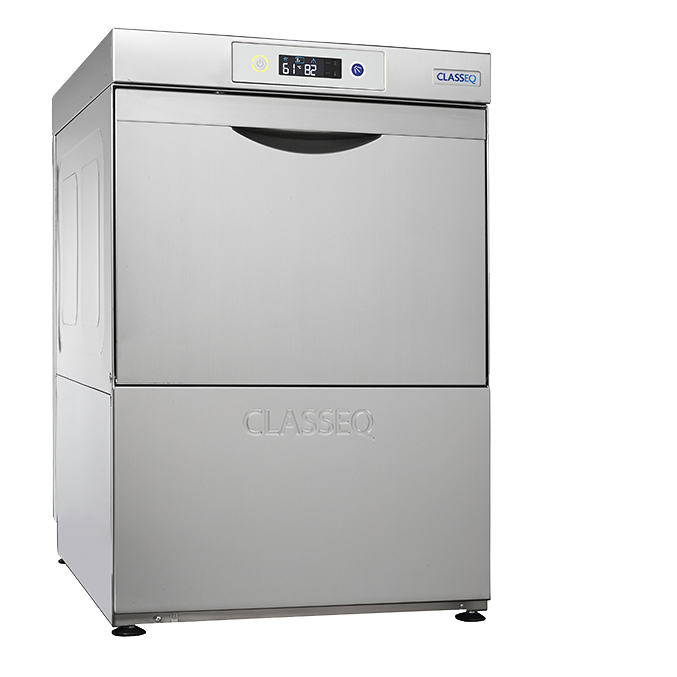

G500 Door Closed

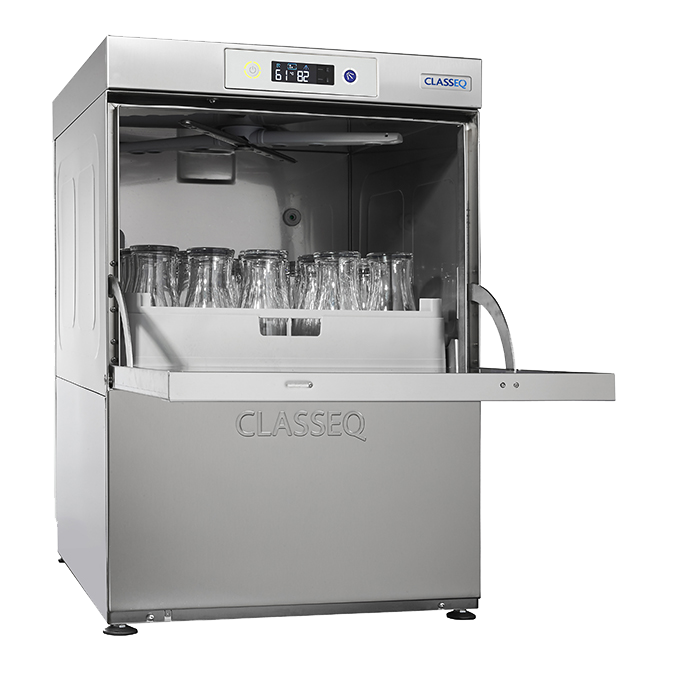

G500 Rack Inside
G500 Rack On Door

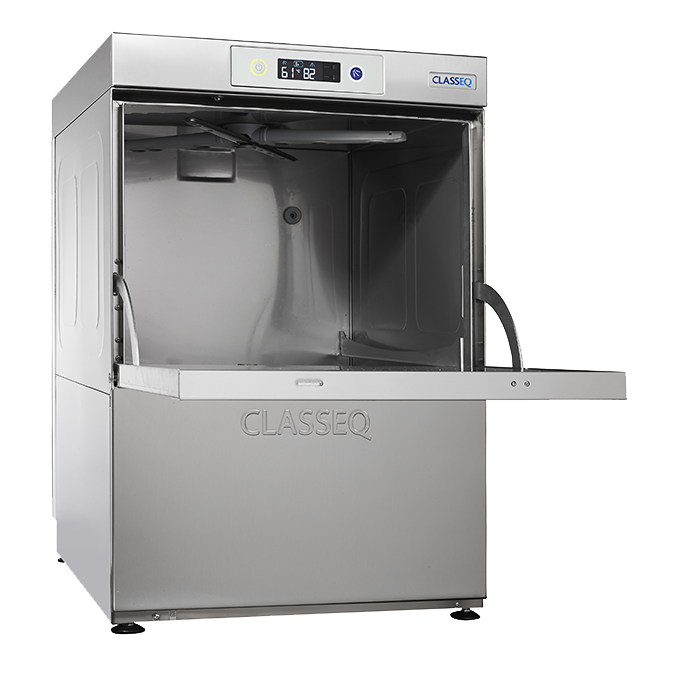

G500 Door Open copy


A compact undercounter glasswasher

Front loading commercial glasswasher with two wash cycles – standard (two minutes) and light (1.5 minutes) and simple two-button controls for effortless, consistently clean results. The G500 is an easy to operate glasswasher with a 500 x 500mm basket that holds 25 pint-sized glasses.

Digital LCD display to ensure the operator that the wash is being carried out thoroughly. This machine is capable of cleaning up to 1,000 glasses per hour.

Key Features

Dimensions: 550 mm x 830 mm x 605 mm Basket Size: 500 x 500 mm Glasses per rack : 25 Theoretical max racks per hour: 40 Glasses per hour: 1000

How to Buy

Complete the form and we will connect you with a reseller.

Product Downloads

Login or Register to download a brochure, manuals or technical documentation.

G500 - Technical Data at a Glance

A standard Glasswasher with a 500mm x 500mm basket size. Wash up to 1,000 pint glasses an hour.

Basket Size 500 x 500 mm
Programmes 1.5 & 2 minute cycles
Baskets per hour Up to 40
Chemical Pump Fitted as standard
Dimensions 550mm (W) x 830mm (H) (860mm max.) x 605mm (D)
Power 30 Amp, Single Phase | 13 Amp, Three Phase | 12 Amp, Single Phase
Glasswasher Machine Front

Technical Details - G500

Full technical specification of the G500. Our glossary can help you understand all the technical terms. Still confused, just complete the contact form and one our team will be in touch.

Width: 550 mm
Height: 830 mm
Depth: 605 mm
Door Depth - Open: 987 mm
Basket Size: 500 x 500 mm
Rack Size: 500 x 500 mm
Clear entry height: 343 mm
Theoretical max racks per hour: 40
Glasses per rack : 25
Number of wash programmes: 2
Duration of wash programmes: 1.5 & 2 minutes
Glasses per hour: 1000
Wash tank element: 2 kW
Rinse tank element: 6 kW
Wash tank capacity: 14.33 Litres
Rinse tank capacity: 7.5 Litres
Rinse water consumption at 3 bar: 3 Litres
Wash tank temperature: 55 °C
Rinse tank temperature: 70 °C
Wash pump power: 0.58 kW
Hydraulic Specifications
Water supply connection: G3/4" (3/4"Bsp)
Minimum allowed supply water pressure: 2-4 bar
Required water flow rate: 11L/min
Minimum incoming water temperature: 4 °C
Maximum incoming water temperature: 55°C
Gravity drain height (from machine base): 40mm
Pumped drain height (from machine base): 600mm
Drain Size: o40mm
Electrical Specifications

Standard Configuration

Amps Required: 30A (1 phase)
Standard Operating voltage: 220-240V / 1N~ / 50Hz
Total connected load: 6.58kW

Optional Configuration

Amps Required: 13A (3 phase)
Standard Operating Voltage: 380-415V / 3N-/50Hz
Total Connected Load: 6.58kW

Optional Configuration

Amps Required: 12A (1 phase)
Standard Operating Voltage: 220-240V / 1N~ / 50Hz
Total Connected Load: 2.58kW
Additional Info
Noise level: < 70 dB
Empty Weight: 44kgs
Packed weight: 57.6kgs
Fully loaded weight: 64.5kgs
Service: Installation

Full suite of product information including product brochures, user manuals, engineer's manuals and more are available from our download centre.
