Standard Undercounter Dishwasher
D500
Front loading commercial dishwasher with three minute wash cycle and simple two button controls for effortless, consistently clean results. The D500 is an easy to operate dishwasher with a 500 x 500mm basket that holds 18 full-sized plates. It features three wash cycles of Light (2-minute), Standard (3-minutes) and Intensive (5-minutes), this machine is capable of cleaning up to 750 plates per hour.
The D500 comes as standard with a gravity drain, which is suitable in instances where the machine is above the waste outlet. The optional drain pump (D500P) is essential where the drainage is either higher than the machines waste outlet, or has to be pumped to a stand pipe.
Key Features
Three Wash Programs
Features three wash programs - Light (2 minutes), Standard (3 minutes) and Intensive (5 minutes) - the D500 is capable of washing up to 30 Racks / 540 plates per hour.
Temperature Interlock
Temperature interlock guarantees the rinse is at correct temperature.

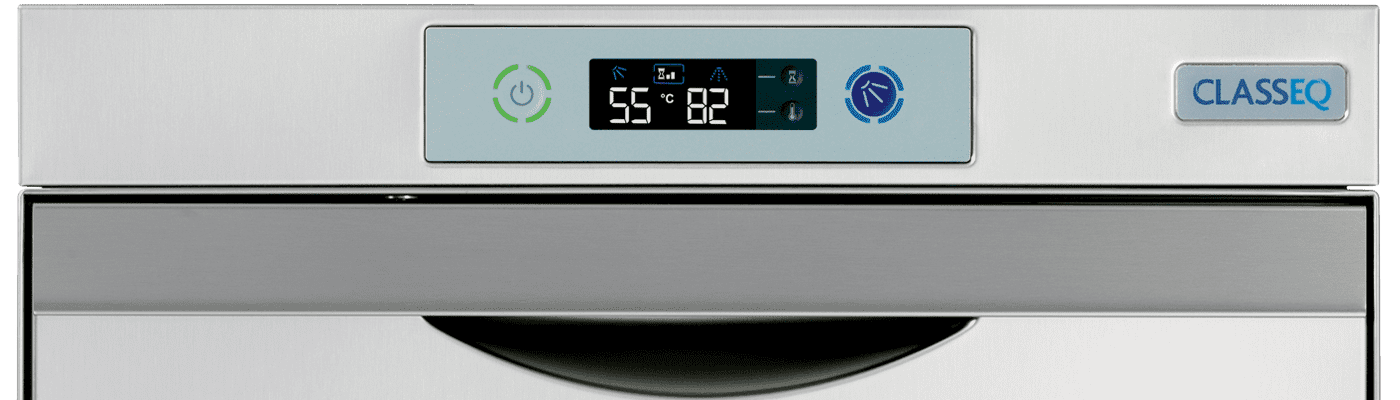

Intuitive LCD Digital Display
The digital LCD display accurately shows the temperature of the wash tank and rinse boiler, reassuring the operator that it is up to temperature and fully sanitising during the wash cycle.
Gravity Drain
All models come as standard with a gravity drain, which is suitable in instances where the machine is above the waste outlet.
Colour Coded Display
Amber Flashing - Machine Heating
Blue - Machine in Cycle
Green - Machine Ready.
Optional Drain Pump
All Standard Dishwashers can also be upgraded to include a drain pump - Essential for when the drainage is either higher than the machines waste outlet, or has to be pumped to a stand pipe. To upgrade to a drain pump, quote codes: D350P, D400P & D500P.
Benefits
Built-in Chemical Pumps
Built-in digital chemical pumps ensure that the optimum amount of chemical is dosed for the best results.
Energy Saving Standby Mode
Whilst idol between washes, Classeq dishwashers will automatically reduce rinse boiler heat to the optimum level until it is operated without any detriment to performance.
Removable Basket Guides
Basket guides can easily be removed to give full access to the inside of the machine when cleaning , meaning that there are no areas where dirt can collect and ultimately effect the machines cleaning performance
Dual Wash Filter System
Classeq's dual wash filter system allows for full coverage of the wash tank, preventing any food waste or objects from entering the wash tank water and clogging the machine up. As they are in two parts, they can easily be removed when cleaning the machine.
Temperature Interlock - Guarantees Hot Rinse
The temperature interlock is a safety feature that ensures the rinse water is at the correct temperature before starting the rinse cycle. This ensures that the machine is fully sanitising the dishes and ultimately giving the best results possible.
Self-Clean During Drain Down
All our machines will run a rinse cycle during the drain down which assists the operator during the cleaning as per our recommended cleaning guidelines.
Double Skinned Door
All standard glass and dishwashers have a double skinned door which provides additional strength, plus improves the machines heat retention and reduces the noise during operation.
Tech Specs
Dimensions
Dimensions
- Width:
- 550mm
- Depth:
- 605mm
- Depth - Door Open:
- 987mm
- Height:
- 830mm (min) / 870mm (max)
- Height - Door Open:
- 375mm
- Clear Entry Height:
- 343mm
- Drain Size:
- ø40mm
Hydraulic
Hydraulic
- Water supply connection:
- G3/4” (3/4” BSP)
- Required Water Flow Rate:
- 11 L/min
- Minimum allowed supply water pressure:
- 2.0 bar
- Minimum Incoming Water Temperature:
- 4°C
- Maximum Incoming Water Temperature:
- 55°C
- Gravity Drain Height:
- 40mm
- Pumped Drain Height:
- 600mm
Other
Other
- Empty Weight:
- 44kg
- Fully Loaded Weight:
- 64.5kg
- Packed Weight:
- 57.6kg
Performance
Performance
- Theoretical max racks/hour:
- 20
- Plates per Rack:
- 18
- Wash Tank Element:
- 2.00kW
- Rinse Tank Element:
- 6.00kW
- Wash Tank Capacity:
- 14.33 Litres
- Rinse Tank Capacity:
- 7.5 Litres
- Rinse Water Consumption at 3 bar:
- 3 Litres/cycle
- Wash Tank Temperature:
- 55°C
- Rinse Tank Temperature:
- 82°C
- Wash Pump Power:
- 0.58kW
Electrical
Standard Configuration
- Amps Required:
- 30A 1 Phase
- Operating voltage:
- 220-240V / 1N~ / 50Hz
- Total Connected Load:
- 6.58kW
Optional 3 Phase Configuration
- Amps Required 3 Phase:
- 13A 3 Phase
- Operating Voltage 3 Phase:
- 380-415V/3N/50Hz
- Total Connected Load 3 Phase:
- 6.58kW
Optional 1 Phase Configuration
- Amps Required 1 Phase:
- 12A 1 Phase
- Operating Voltage 1 Phase:
- 220-240V/1N~/50Hz
- Total Connected Load 1 Phase:
- 2.58kW
