Standard Undercounter Glasswasher
G500
Front loading commercial glasswasher with two wash cycles – standard (two minutes) and light (1.5 minutes) and simple two-button controls for effortless, consistently clean results. The G500 is an easy to operate glasswasher with a 500 x 500mm basket that holds 25 pint-sized glasses. Digital LCD display to ensure the operator that the wash is being carried out thoroughly. This machine is capable of cleaning up to 1000 glasses per hour.
Key Features
Two Wash Programs
Standard (2 min) and light (1.5 min) cycles allow for maximum output without compromising wash quality.
Temperature Interlock
Temperature interlock guarantees the rinse is at correct temperature.
Two Button Control
The G500DUO is simple to use with two control buttons (on/off & start/stop), plus two smaller buttons for selecting between wash cycles.
Gravity Drain
All models come as standard with a gravity drain, which is suitable in instances where the machine is above the waste outlet.

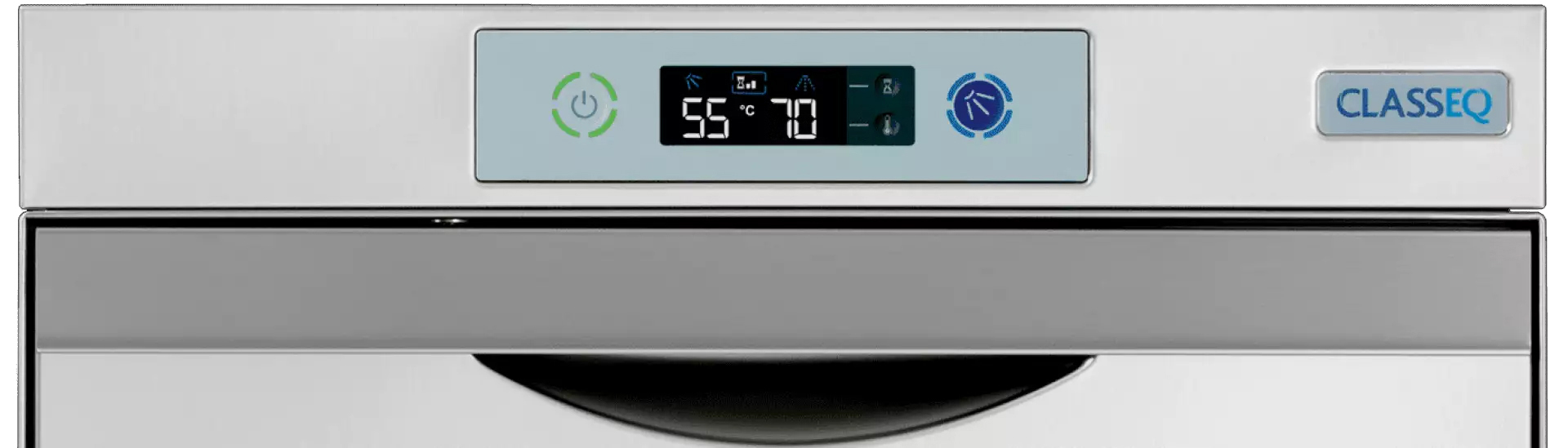

Colour Coded Display
Amber flashing - Machine heating
Blue - Machine in cycle
Green - Machine Ready
Optional Drain Pump
All Standard Glasswashers can also be upgraded to include a drain pump - Essential for when the drainage is either higher than the machines waste outlet, or has to be pumped to a stand pipe. To upgrade to a drain pump, quote codes: G350P, G400P & G500P.
Benefits
Simple to use
Universally recognised symbols and logical controls make operating our machines crystal clear across all languages, meaning better results, less mistakes and minimal training required.
Self-clean during drain down
All our machines will run a rinse cycle during the drain down which assists the operator during the cleaning as per our recommended cleaning guidelines.
Energy saving standby mode
Whilst idol between washes, Classeq dishwashers will automatically reduce rinse boiler heat to the optimum level until it is operated without any detriment to performance.
Optional electrical configuration
The G500 can be downgraded to fit your electrical requirement. For 13A configurations we always recommend a hot water feed to minimise the effect on its heating performance.
Built-in Chemical Pumps
Built-in digital chemical pumps ensure that the optimum amount of chemical is dosed for the best results.
Removable Basket Guides
Basket guides can easily be removed to give full access to the inside of the machine when cleaning , meaning that there are no areas where dirt can collect and ultimately effect the machines cleaning performance.
Dual Wash Filter System
Classeq's dual wash filter system allows for full coverage of the wash tank, preventing any food waste or objects from entering the wash tank water and clogging the machine up. As they are in two parts, they can easily be removed when cleaning the machine.
Temperature Interlock - Guarantees Hot Rinse
The temperature interlock is a safety feature that ensures the rinse water is at the correct temperature before starting the rinse cycle. This ensures that the machine is fully sanitising the dishes and ultimately giving the best results possible.
Double Skinned Door
All standard glass and dishwashers have a double skinned door which provides additional strength, plus improves the machines heat retention and reduces the noise during operation.
Tech Specs
Dimensions
Dimensions
- Width:
- 550mm
- Depth:
- 605mm
- Depth - Door Open:
- 987mm
- Height:
- 830(min),860(max)mm
- Height - Door Open:
- 375mm
- Clear Entry Height:
- 343mm
- Drain Size:
- ø40mm
Hydraulic
Hydraulic
- Water supply connection:
- G3/4” (3/4” BSP)
- Required Water Flow Rate:
- 11 L/min
- Minimum allowed supply water pressure:
- 2.0 bar
- Minimum Incoming Water Temperature:
- 4°C
- Maximum Incoming Water Temperature:
- 55°C
- Gravity Drain Height:
- 40mm
- Pumped Drain Height:
- 600mm
Other
Other
- Empty Weight:
- 44kg
- Fully Loaded Weight:
- 64.5kg
- Packed Weight:
- 57.6kg
Performance
Performance
- Theoretical max racks/hour:
- 40
- Glasses per Rack:
- 25
- Wash Tank Element:
- 2.00kW
- Rinse Tank Element:
- 6.00kW
- Wash Tank Capacity:
- 14.33 Litres
- Rinse Tank Capacity:
- 7.5 Litres
- Rinse Water Consumption at 3 bar:
- 3 Litres/cycle
- Wash Tank Temperature:
- 55°C
- Rinse Tank Temperature:
- 70°C
- Wash Pump Power:
- 0.58kW
Electrical
Standard Configuration
- Amps Required:
- 30A 1 Phase
- Operating voltage:
- 220-240V / 1N~ / 50Hz
- Total Connected Load:
- 6.58kW
Optional 3 Phase Configuration
- Amps Required 3 Phase:
- 13A 3 Phase
- Operating Voltage 3 Phase:
- 380-415V/3N/50Hz
- Total Connected Load 3 Phase:
- 6.58kW
Optional 1 Phase Configuration
- Amps Required 1 Phase:
- 12A 1 Phase
- Operating Voltage 1 Phase:
- 220-240V/1N~/50Hz
- Total Connected Load 1 Phase:
- 2.58kW
