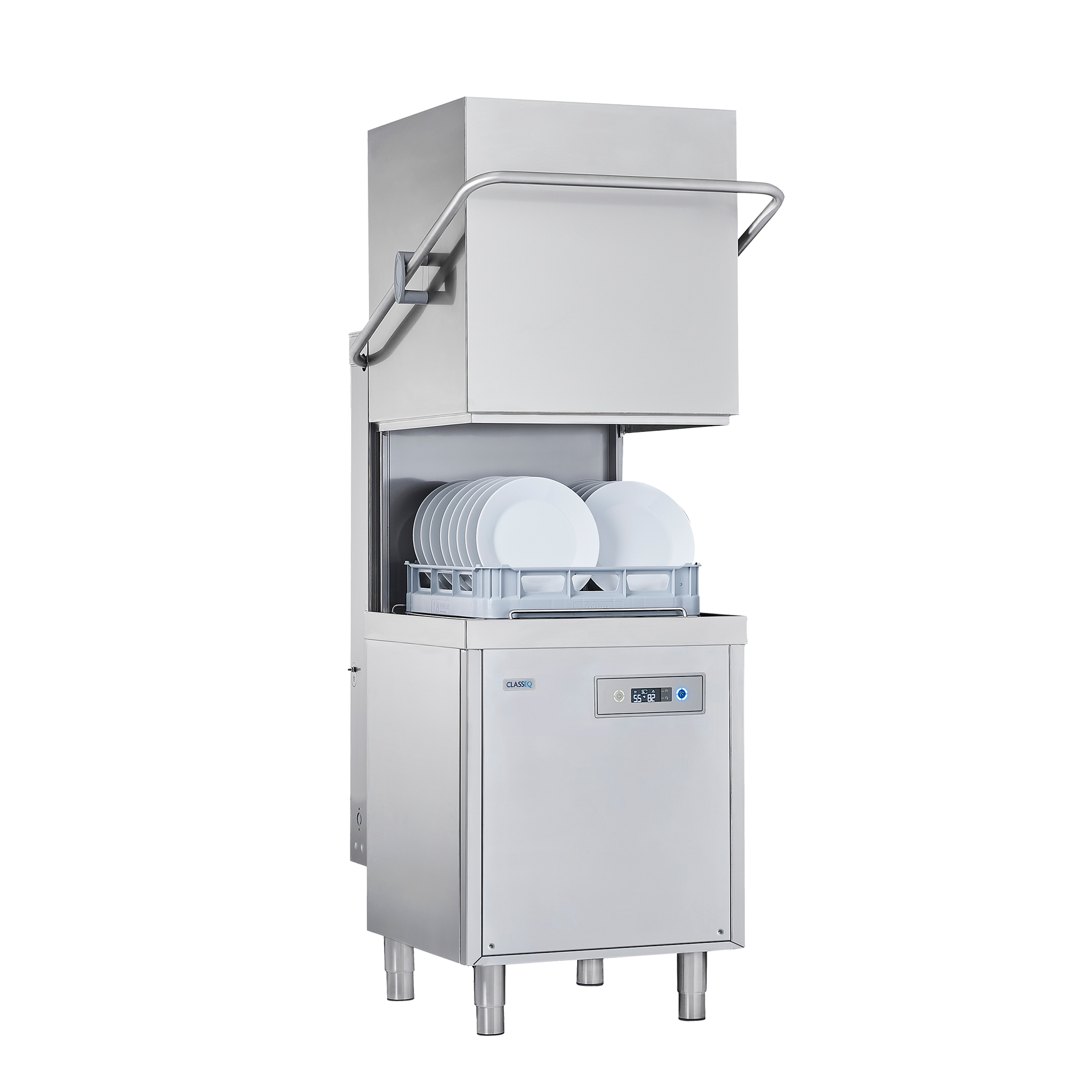

Pass Through Dishwasher

P500A-16

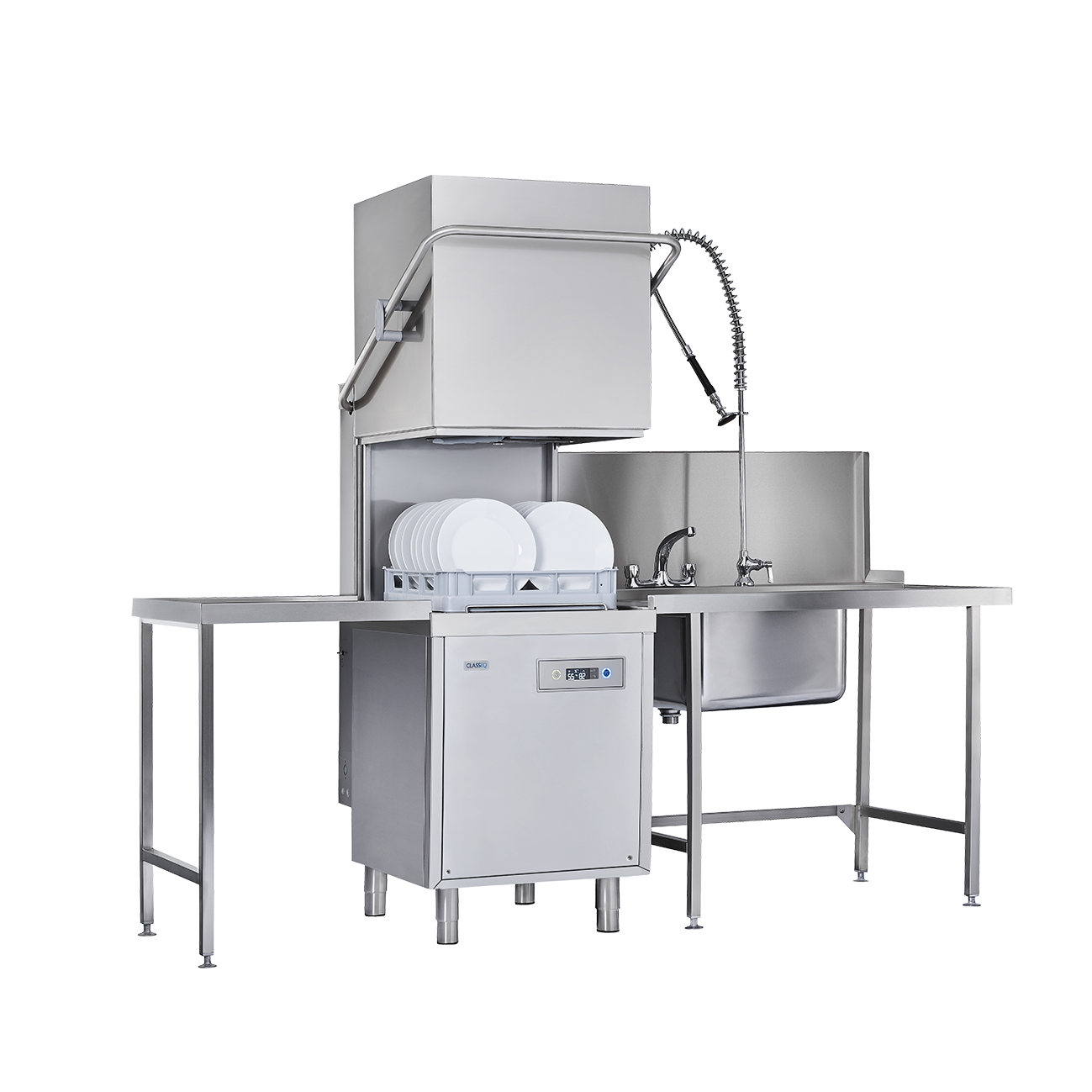

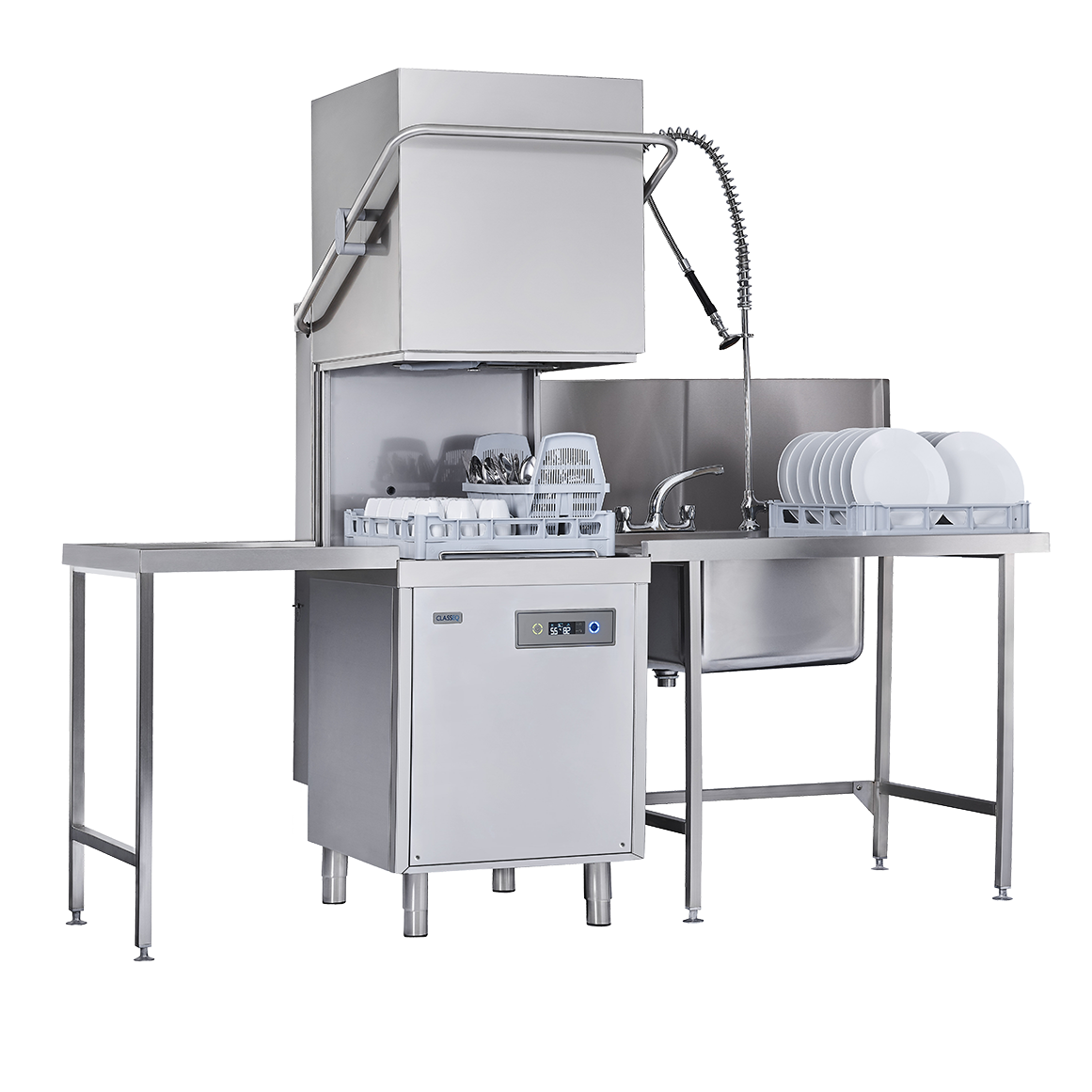

High volume digital dishwashers suitable for straight-through or corner situated operation, the P500A machines are capable of washing up to 720 plates per hour.

Reduced water consumption via 39 litre wash tank ensures minimised running costs. Easy cleaning due to the continuous hood clean and removable front panel allows excellent service access.

The P500A comes with a type A air gap, drain pump and rinse booster pump as standard. A detergent and rinse aid pump can be added as an optional extra.

How to Buy Distributor Enquiries

Key Features

Three Wash Programs

Standard (3 min), light (1.5 min) and Intense (5 min) cycles allow for maximum output without compromising wash quality.

Simple Two Touch Control Panel Operation

Simple two-button control for improved user experience.

Continuous Hood Clean System

Ensures the interior of the hood is hygienically clean at all times

Built-in Components

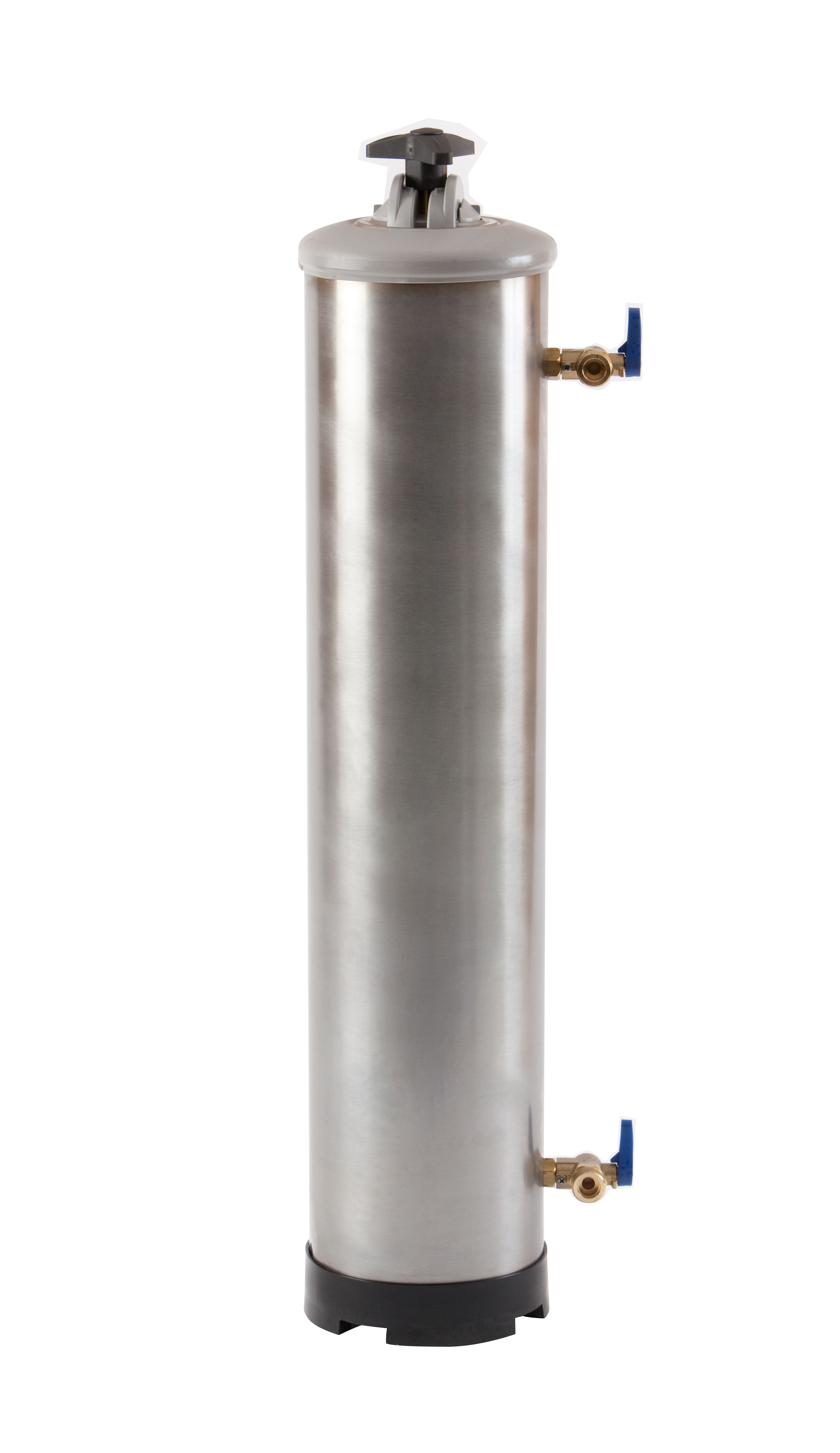

The P500A comes with a drain pump and rinse booster pump ensuring it meets all installation regulations and requirements. Integral water softener and built-in chemical dispenser are available as optional extras.

Water Board (WRAS) Compliant

All our pass through dishwashers have 'Type A' air gaps which completely prevents any dirty water from going back into the mains water supply (an essential and legal requirement).

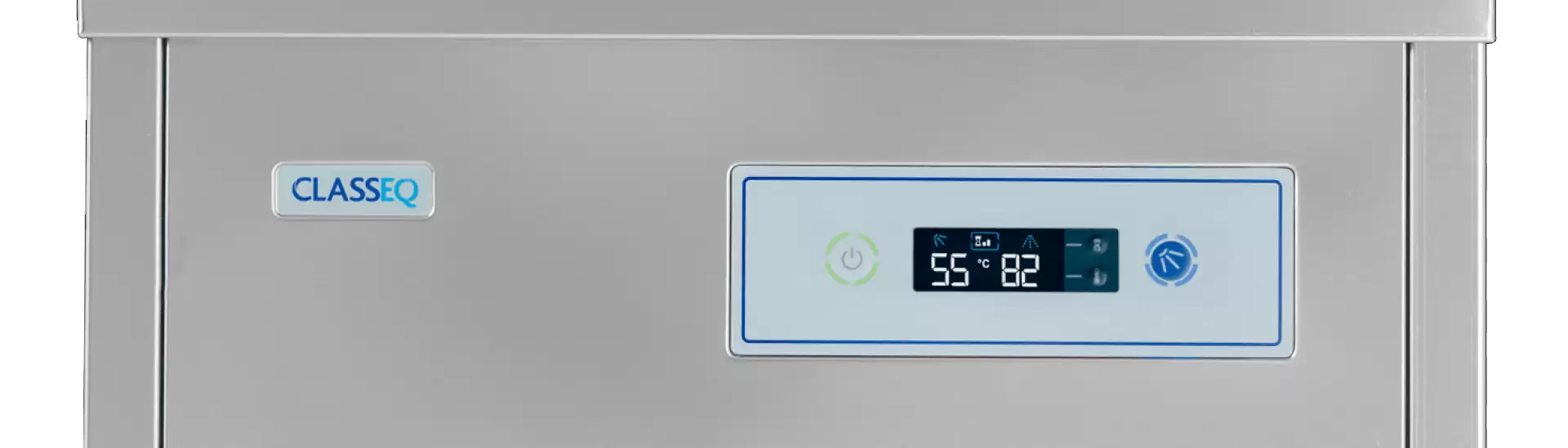

Colour Coded Display

Amber Light (flashing) - Machine is heating up
Green Light - Machine ready
Blue Light - Machine is in cycle.

Benefits

Tech Specs

Dimensions

Dimensions
Width:
630mm
Depth:
728mm
Height - Hood Open:
1955-2010mm
Height - Hood Closed:
1460-1515mm
Clear Entry Height:
440mm
Drain Height from Floor Level:
0-700mm
Water inlet height from floor level:
265-315mm
Drain Size:
ø40mm
Rack Size:
500mm2

Hydraulic

Hydraulic
Water supply connection:
G3/4” (3/4” BSP)
Required Water Flow Rate:
11Ltrs/min 4Ltrs/min (WS)
Minimum allowed supply water pressure:
2.0 bar

Electrical

Electrical
Amps Required:
16A 3 Phase
Operating voltage:
380-415V / 3N~/50Hz
Rinse Boiler Heating:
8.64kW
Total Connected Load:
9.32kW

Performance

Performance
Theoretical max racks/hour:
40
Plates per Rack:
18
Wash Tank Heating:
4.05kW
Wash Tank Capacity:
39 Litres
Rinse Water Consumption at 2 bar:
3 Litres
Wash Tank Temperature:
55°C
Wash Pump Capacity:
380 Litres/min
Rinse Boiler Capacity:
7.5 Litres
Rinse Boiler Temperature:
82°C
Cycle Times:
1.5 / 3 / 5
Operating Noise Level:
<70dB
Net Weight:
130kg

Components

Components
Built-in Air Gap (WRAS Approved):
Yes
Rinse Booster Pump:
Yes
Built-in Detergent Dispenser:
Optional
Built-in Rinse Aid Dispenser:
Optional
Drain Pump:
Yes
Temperature Interlock:
Yes
